| Quality Transmission Components | New Hyde Park, NY | |
| |||||||||
| * Click on an image to enlarge it in a new window * | |||||||||

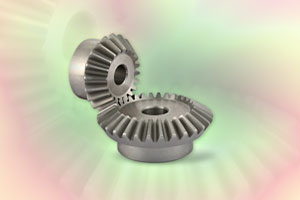

 | Stainless Steel Miter Gears from QTC Are Stocked in 10 Sizes in Modules 1~3 6 Jan 2012 Precision 20° pressure angle stainless steel miter gears from Quality Transmission Components are stocked in 10 sizes in modules 1~3 in both 20 and 25 tooth.  | ||||||||

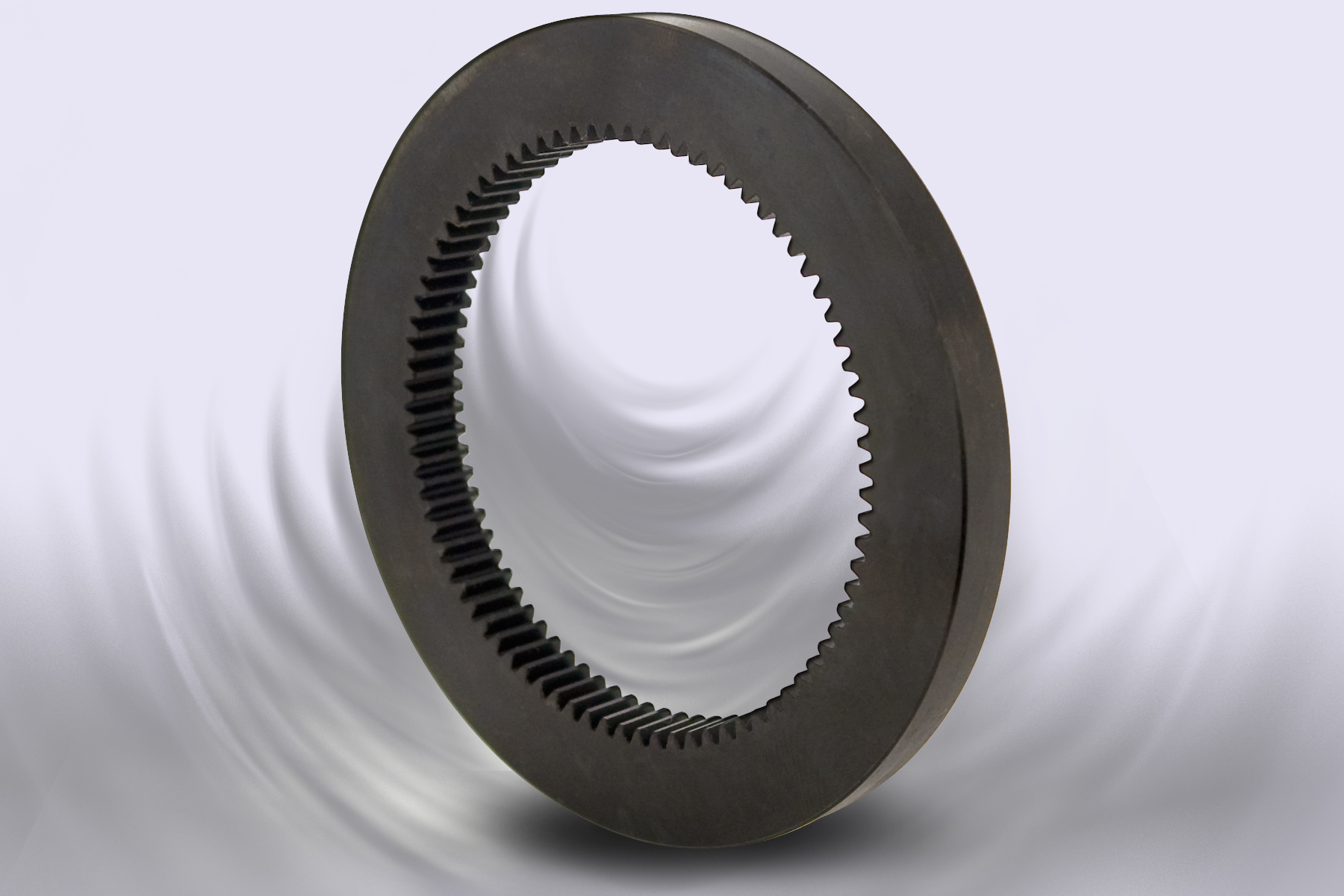

 | Precision Internal Gears from QTC Are Stocked in 22 Sizes in Modules 1 to 3 1 Nov 2011 Precision 20° pressure angle internal gears from Quality Transmission Components are stocked in 22 sizes in modules 1 through 3. They can be combined with available spur gears to make planetary gear drives. | ||||||||

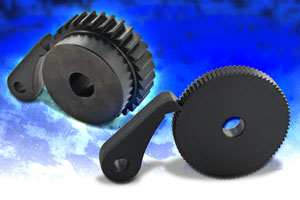

 | A New Series of Metric Pawls & Ratchets From QTC Feature Induction Hardened Teeth 25 May 2011 A new Series of metric pawls & ratchets from Quality Transmission Components feature induction hardened teeth, ensuring superior durability. These pawls are designed to prevent reverse rotation. The pawls & ratchets, identified as the SRT Series are stocked in carbon steel. | ||||||||

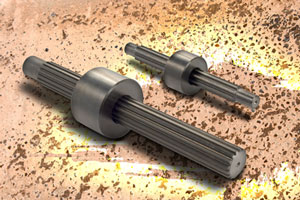

 | A New Series of Metric Involute Splined Shafts & Bushings from QTC Feature Thermal Refined Teeth 23 Feb 2011 A new Series of module 1.667 involute splined shafts & bushings from Quality Transmission Components (QTC) feature thermal refined heat treatment to ensure good abrasion resistance. | ||||||||

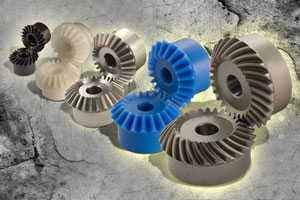

 | New Series of Metric Miter Gears from QTC Provides over 342 Ways to Transmit Motion at a 90º Angle to the Shaft 24 Nov 2009 A new Series of metric miter gears from Quality Transmission Components (QTC) provides over 342 ways to transmit motion at a 90º angle to the shaft as an ideal solution to many power transmission design applications. | ||||||||

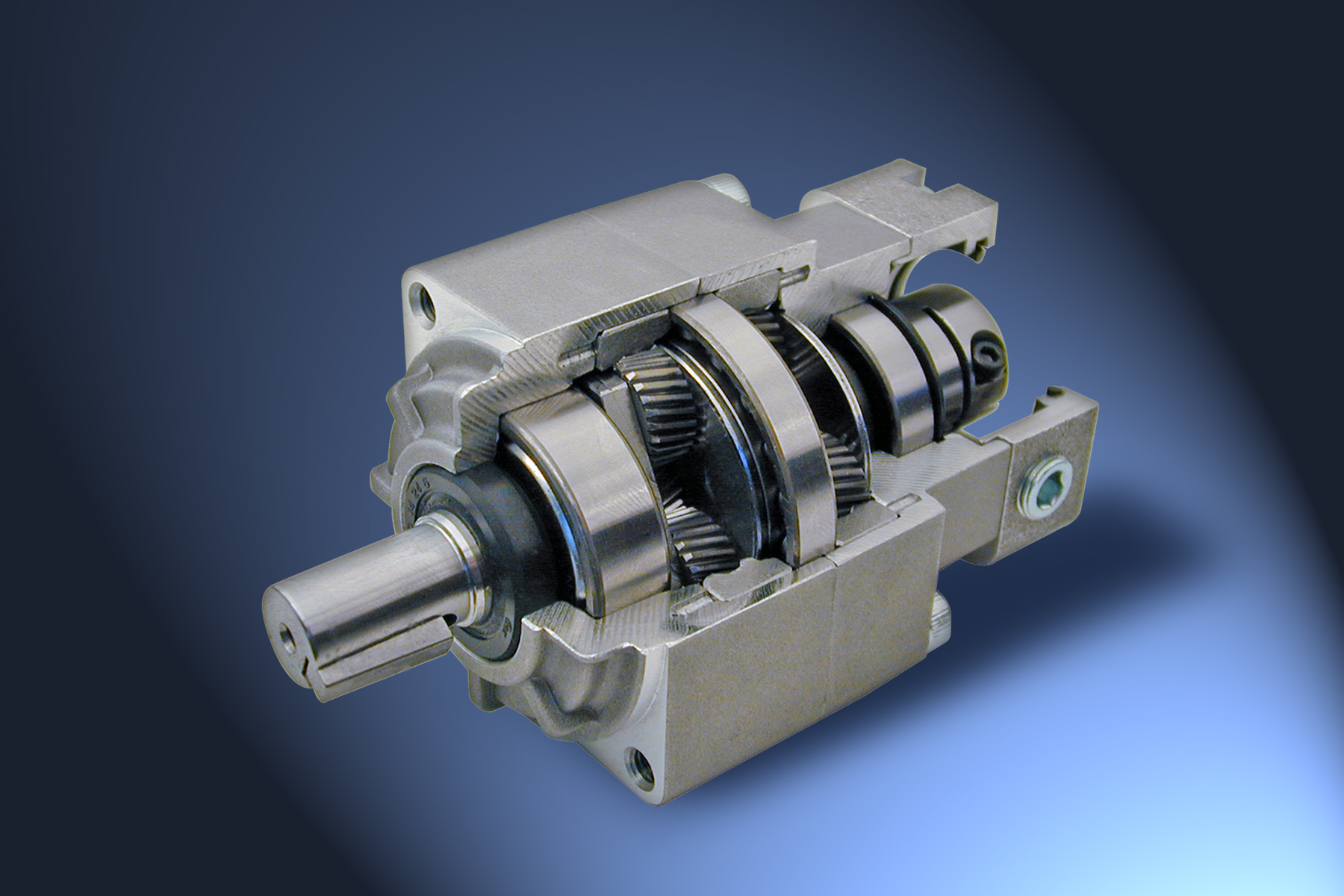

 | New Size 52 Planetary Gearheads from QTC Feature Smooth Compact Helical Gear Drives 8 Oct 2009 New size 52 planetary gearheads from Quality Transmission Components feature smooth, quiet, lightweight, compact helical gear drives. These rugged units, identified as the QGH-52 Series offer a choice of 3 backlash specifications. | ||||||||

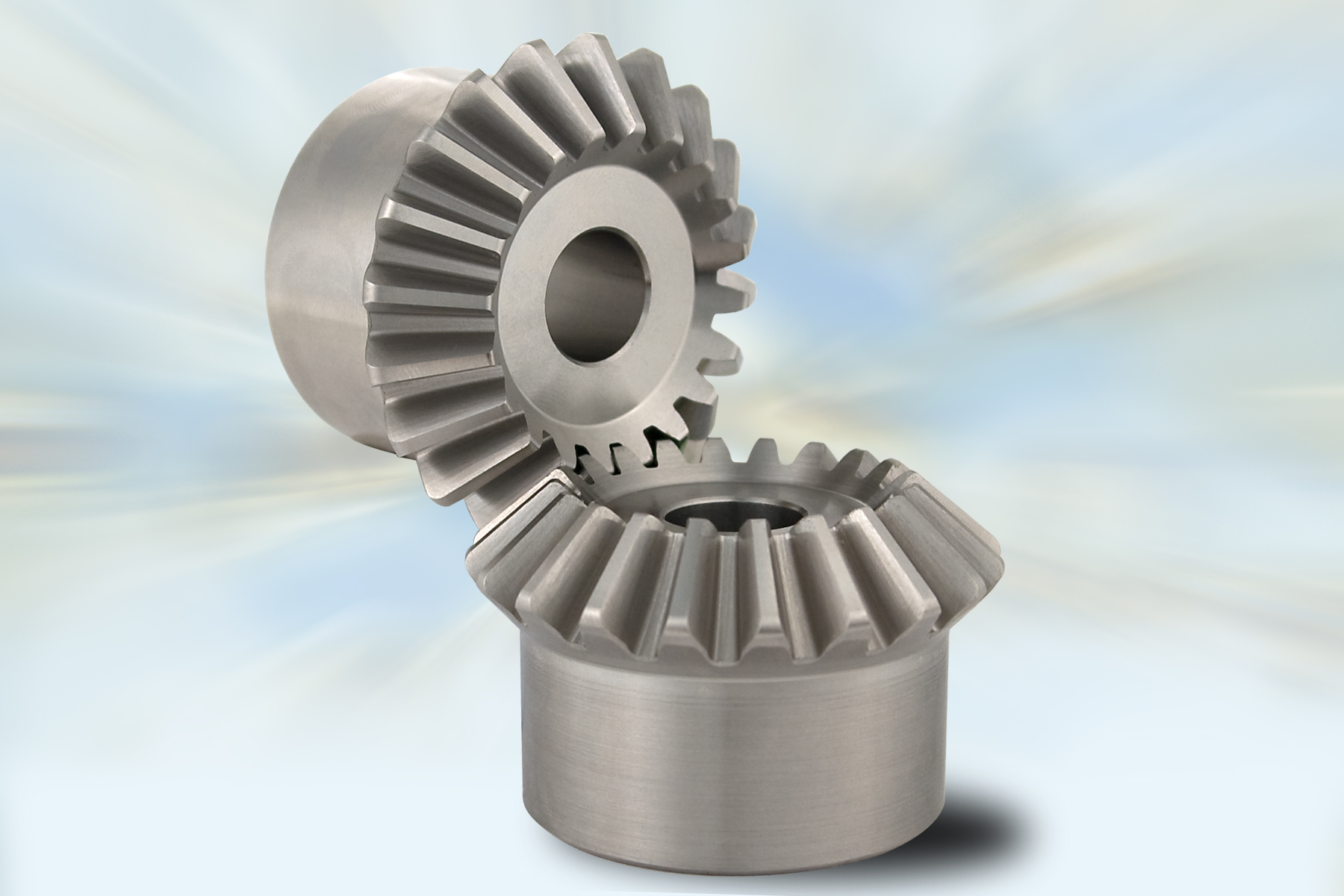

 | Stainless Steel Bevel Gears from QTC are Stocked in 24 Sizes in Modules 1.5~3 21 Jul 2009 Quality Transmission Components now stocks precision 20 degree pressure angle stainless steel bevel gears in 24 sizes in modules 1.5~3. | ||||||||
 | AT10 Inch & Metric Timing Belt Drives 15 Oct 2008 A new Series of AT10 inch and metric timing belt drives from Econobelt/QTC are now available. The 162 pulleys, identified as the QPMAT10 in metric and QPEAT10 in inch Series, are made from 2024-T4 or 2024-T351 Aluminum Alloy or AISI 1045 Steel. All series offer double flange and flangeless types, with and without set screws for fastening to shafts. They are designed to fit inch shafts ranging from .3750" (9.525 mm) to .7500" (19.05 mm) and metric shafts from 8 mm (.3150") to 16 mm (.6299"). | ||||||||

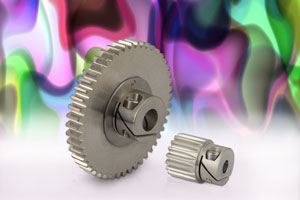

 | Stainless Steel Gears w/ Fairloc® Integral Fastening System 8 Oct 2008 A new series of Modules 0.5, 0.8, and 1 spur gears from Quality Transmission Components features the patented Fairloc® integral hub fastening system which eliminates marred shafts. These 20° pressure angle precision gears conform to JIS N8 Grade standards. These SUS303 stainless steel gears are identified as the SUSL Series. The Fairloc® integral hub fastener is the ideal choice where phase adjustment, timing, position adjustment and frequent removal of the component are factors in the specific application. In addition, Fairloc® offers full component support along the entire hub section. These very cost-effective gears are compact, self-contained and offer a small gear hub envelope. These gears are designed to fit shafts ranging from 4 mm to 10 mm in diameter. They are stocked with face widths ranging from 5 to 8 mm. Their sizes range from 14 to 120 teeth. | ||||||||
| |
| Showing 1-9 of 9 News Releases | ||
| 1 (1 page total) |
