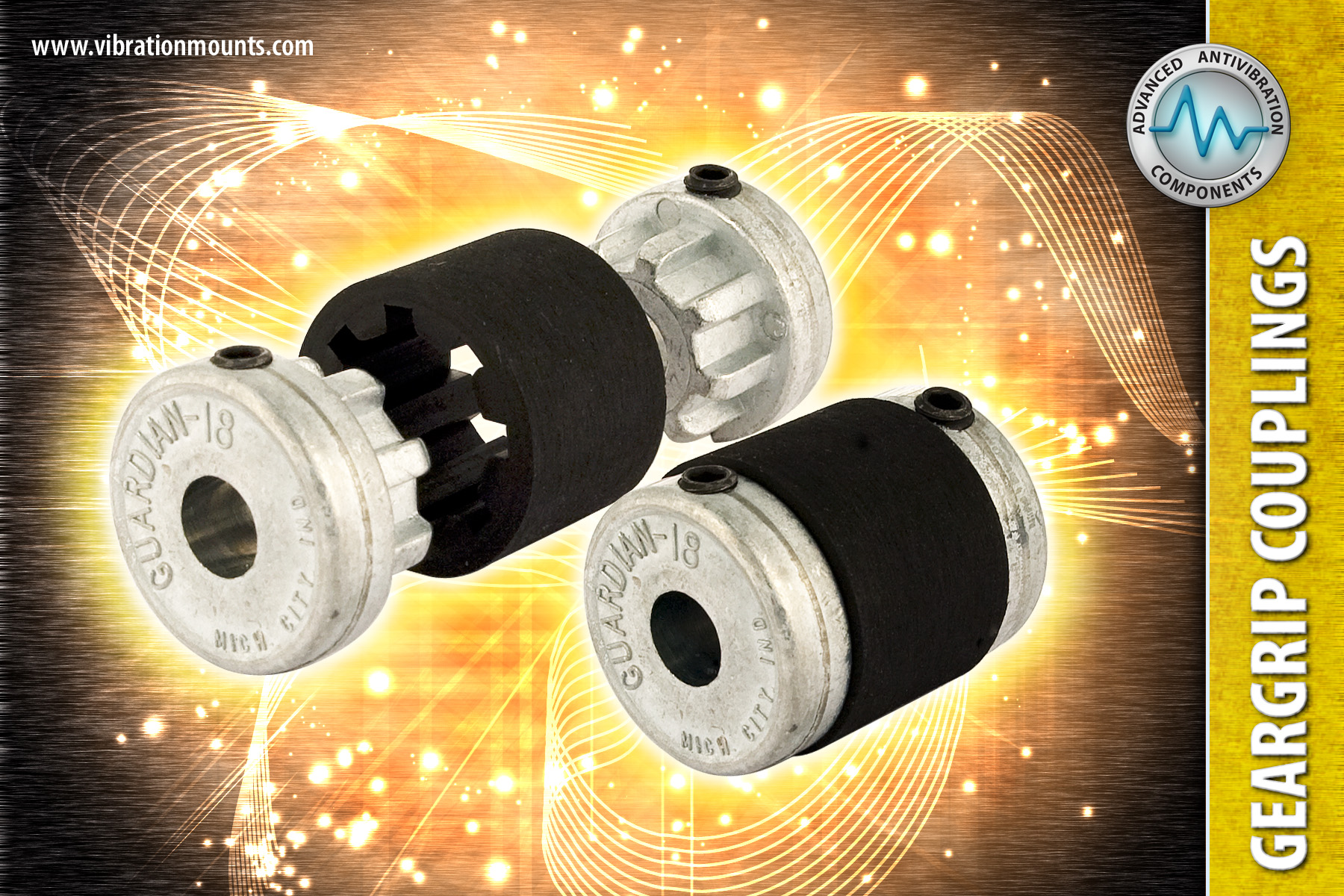

| | Nov 14, 2012 — New Hyde Park NY -- A new series of flexible-geargrip couplings from Advanced Antivibration Components (AAC) are designed to dampen shock and vibration and are electrically isolated. The center of these couplings, identified as the V5Z1-... (complete) and V5D1-... (hub only) and V5R... (Sleeve only) Series, are made from neoprene with ground O.D. The hubs are made of zinc alloy die casting. They are featured at the AAC eStore where you can order online, request a quote, download CAD models, check stock plus view catalog and technical pages.
They are designed to fit 7 shaft diameters which range from .125" (3.18 mm) up to .500 (12.7 mm). These couplings are stocked in 4 overall lengths ranging from 1" (25.4 mm) to 2-3/8" (60.3 mm). They do not require any lubrication and have an operating temperature range of -20°F to +71°F (-29°C to +22°C).
AAC stocks a wide range of antivibration and shock isolation products which include: stud & nut type mounts, base plate fastened mounts, wheels, leveling & foot mounts, suspension mounts, spring, steel mesh & cable mounts, bumpers, shock absorbers & channel mounts, bushings & grommets, pads & tapes, and couplings. These products are stocked in different materials including: rubber, neoprene, urethane, sorbothane, stainless steel mesh and springs. Many are suitable for use in extreme environmental conditions. Of special interest is a complete selection of Silicone Gel floor mounts, pads, sheets, plus paste-type thermal gel.
Additional technical specifications are contained in Catalog V100 available free upon request from Advanced Antivibration Components - AAC, 2101 Jericho Turnpike, Box 5416, New Hyde Park, New York 11042-5416. Phone: 516-328-3662. Fax: 516-328-3365 Web: http://vibrationmounts.com/NewProducts/Geargrip.htm | |
