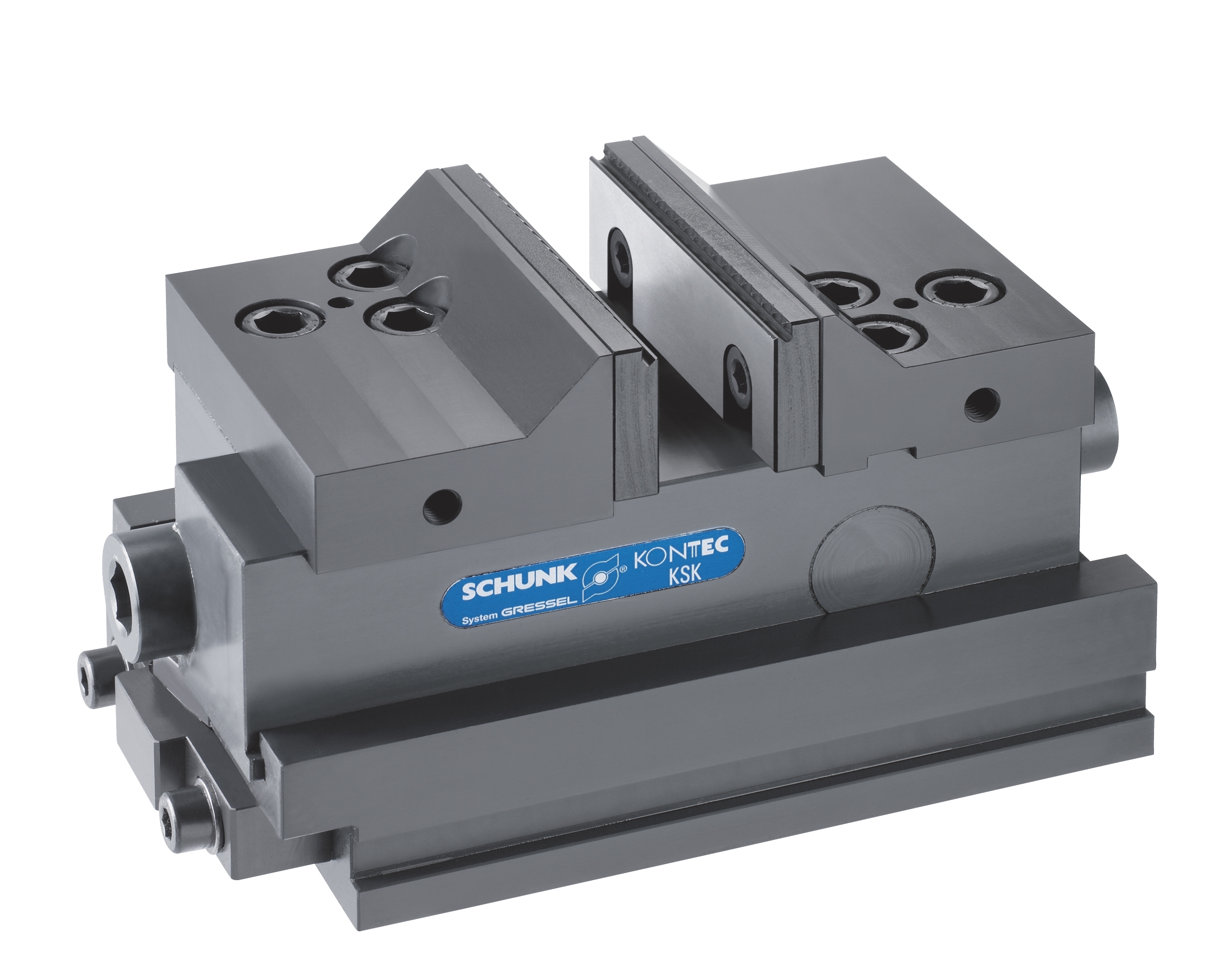

| | Apr 16, 2010 — The KONTEC KSK 5A by SCHUNK is the world’s first completely encapsulated 5 axis centric clamping device. Its unique design ensures total functionality and maximum process reliability – even in a rough environment and makes malfunctions due to soiling and clamped chips a thing of the past.
The KONTEC KSK 5A can be operated from either side, is compact, and has a large clamping range. The centering accuracy is 0.02 mm, and it can be used as a clamping unit for blanks or as a precision-clamping module. Thanks to the latest slide geometry, this tool can be integrated directly into change pallets without any base body.
The length is only 170 mm, with a jaw width of 65 mm, and a clamping range of 0 - 152 mm. The clamping force is 20 kN at 65 Nm, and the centering accuracy is 0.02 mm. | |
