| | Aug 18, 2009 — Nordex’s spline shaft system has been designed for light load applications, where low cost, low friction, and long life are primary design considerations.

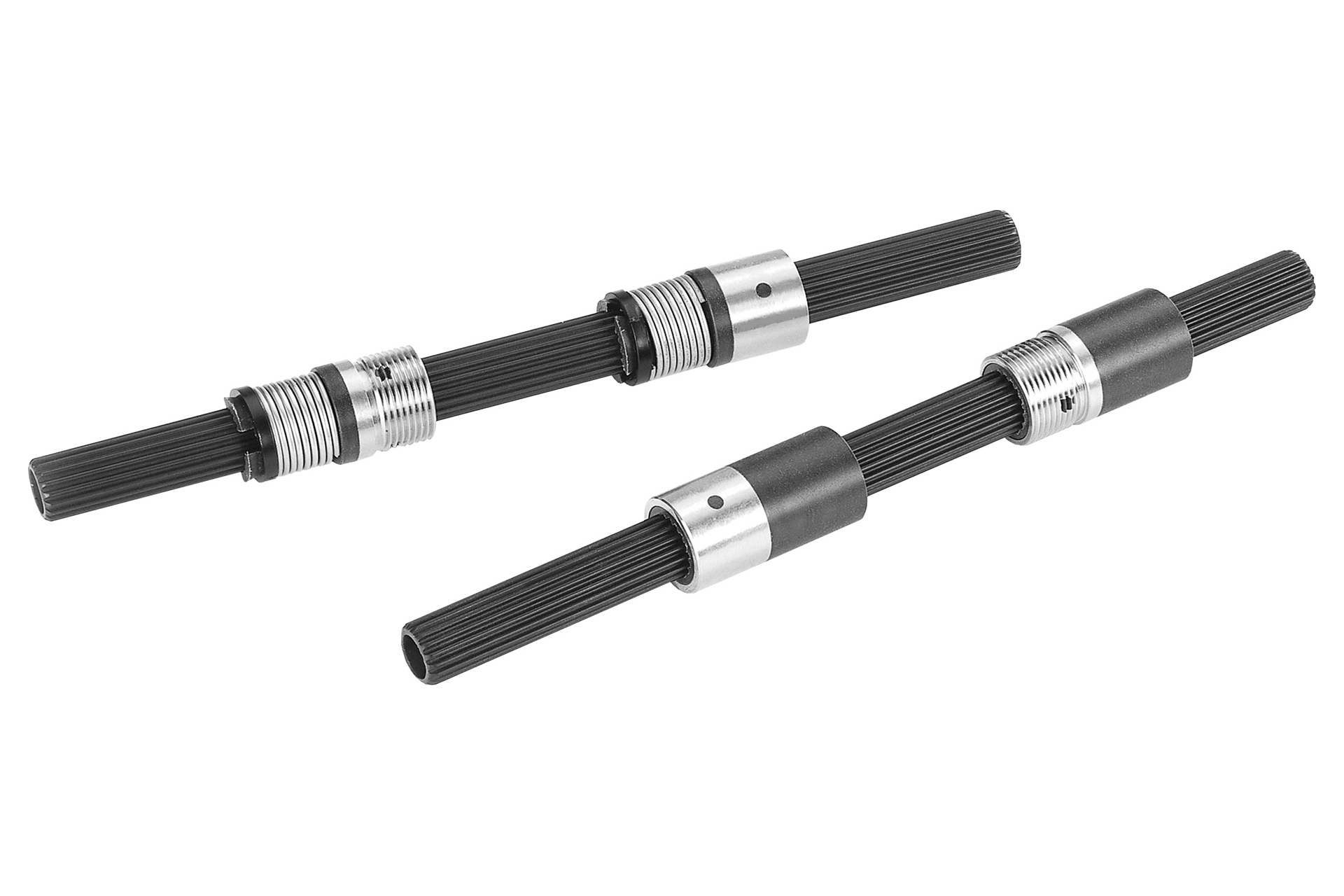

The assembly consists of a light weight, aluminum, spline shaft treated with proprietary low friction TFE coating, mated with a graphite and PTFE filled thermoplastic bushing. The bushing is supplied with an integral brass collar to facilitate various mounting configurations without nut distortion.
Standard shaft straightness is .003” per foot. Typical radial and torsional clearance between shaft and bushing for a basic assembly is .002” to .003” while an anti-backlash assembly is available for applications requiring additional system stiffness.
As with all of these assemblies, special bushing configurations and end machining configurations are available upon request.
