| Stelter & Brinck, Ltd. | Cincinnati, OH | |
| |||||||||
| * Click on an image to enlarge it in a new window * | |||||||||
.jpg) | TFO-HX Thermal Fume Oxidizer with Heat Recovery Applications of less than 25% LEL can benefit from our energy saving recuperative thermal oxidizers. Thermal effectiveness ranges from 55% to 72% depending on the model chosen. High efficiency shell and tube heat exchanger manufactured by S&B Nozzle mixing burner with dedicated combustion air blowerIn line premix burners available Sturdy 10 gauge steel Flame peep sight with cooling air Package combustion system, prepiped and prewired FM, NFPA or IRI approved valve trainCE ratings availableRugged unitized skid with built in lifting lugsHX access doorPurge air damperIntegral process blower with TEFC motor Additional Info: http://www.stelterbrinck.com/thermoxi.htm   | ||||||||
.jpg) | TFO Thermal Fume Oxidizer without Heat Recovery Applications of less than 40% LEL can benefit from out direct thermal oxidizers. These units are designed to take advantage of the high-efficiency contribution of concentrated streams. Exhaust point1/4" stainless tubingSturdy 10 gauge steelInsulated and skinned process fanProcess blowerProcess inletRugged unitized skid with built in lifting lugsIRI valve train Additional Info: http://www.stelterbrinck.com/thermoxi.htm | ||||||||

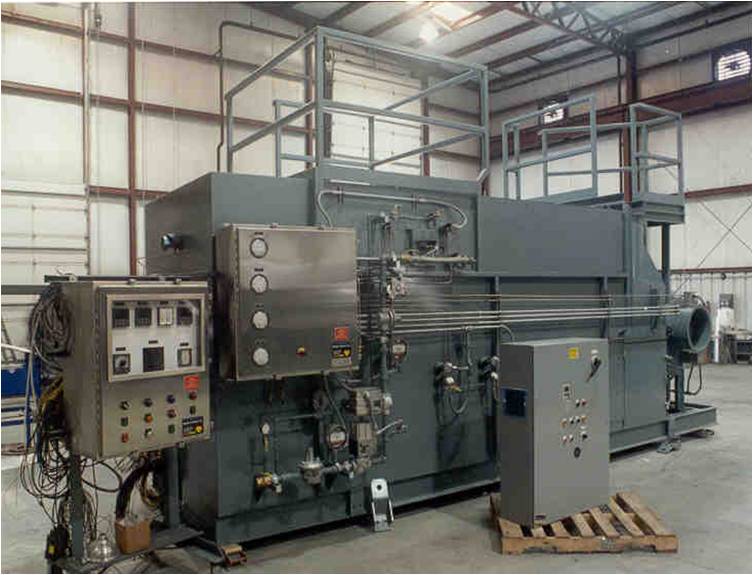

.jpg) | CFO-HX Catalytic Fume Oxidizer with Heat Recovery Applications of less than 20% LEL can benefit from our energy saving recuperative catalytic oxidizers. If you emissions stream is void of potential fouling agents or poisons, our catalytic units may be the perfect match. Catalytic units operate between 650°F and 750°F; resulting in lower fuel costs than thermal oxidizers when combined with our 50% to 72% effective heat exchangers. Burner access door with OSHA railing Test platforms availableProcess fan with TEFC motorCE ratings availableEmission inlet with purge air tee damper Catalyst access doorPrewired FM, NFPA, or IRI approved prepiped valve train 50-72% efficiency heat exchanger shell and tube manufactured by S&B Additional Info: http://www.stelterbrinck.com/catalytic-oxidizers.htm | ||||||||
(t).jpg) | AFTERBURNERS Afterburners are recommended for use in VOC, odor, and opacity (smoke) abatement applications. Custom design available per application. 99+% destruction efficiency availableCastable refractory rated @ 2600°F High temperature aluminum paint Vertical orientation saves valuable floor spaceFM, NFPA, or IRI approved valve train CE ratings available Skid mounted packaged units are prepiped, prewired and test fired prior to shipmentSingle point utility connections for ease of installation Nozzle mixing burner with dedicated combustion air blower tolerant to particulate laden streams Venturi design, no process fan necessary Halogen compatible designs available Additional Info: http://www.stelterbrinck.com/thermoxi.htm | ||||||||
(t).jpg) | CFO Catalytic Fume Oxidizer without Heat Recovery-Direct Applications of less than 20% LEL can benefit from our energy saving catalytic oxidizers. If your emissions stream is void of potential fouling agents or poisons, our catalytic units may be the perfect match. Catalytic units operate between 650°F and 750°F; resulting in lower operating costs then thermal oxidizers. 10 ga. steel construction, 316 SS inner linerFlow control damper Process fan with TEFC motorPurge air damper and emission inletSkid mounted packaged units are prepiped, prewired and test fired prior to shipmentFM, NFPA, or IRI approved valve train CE ratings available Additional Info: http://www.stelterbrinck.com/catalytic-oxidizers.htm  | ||||||||
| |
